HI-D JAX 2- AND 3-CONDUCTOR
PHONE: 773 792-2700
100
JACKS AND PLUGS
?
* Please visit the product pages on our website for the most up-to-date product information

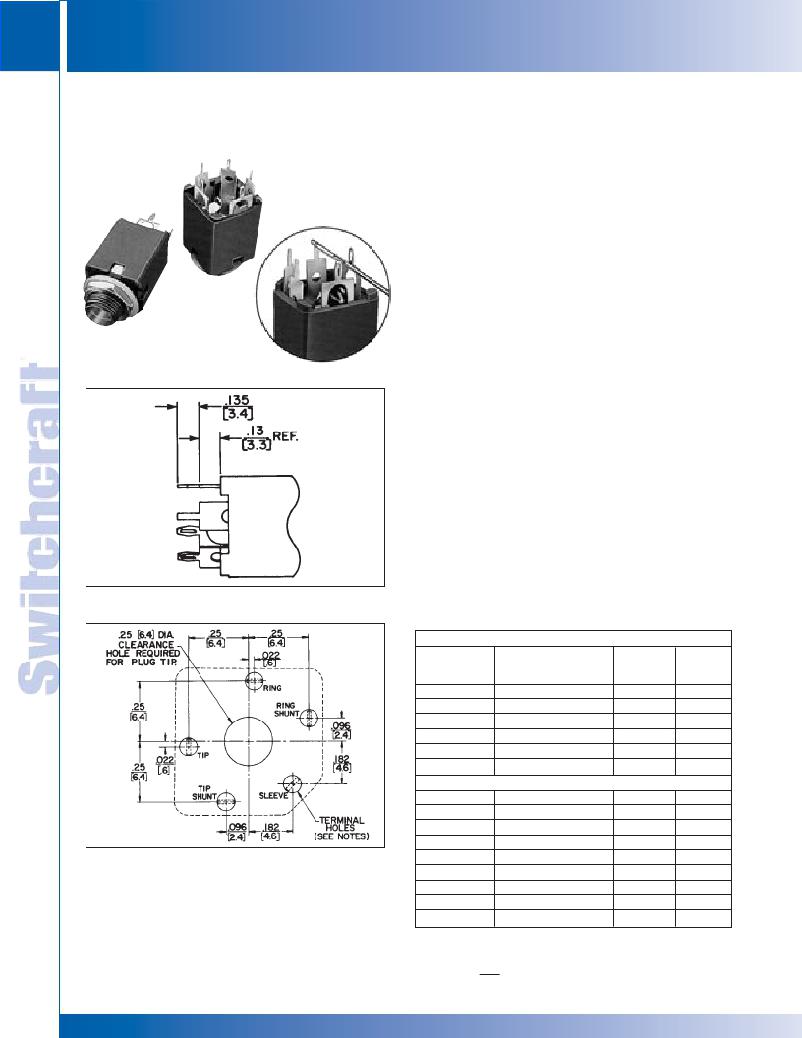

SPRING LOCK PC TERMINALS FOR HI-D JAX ?
HI-D JAX ? SHOWING SPRING
LOCK PC TERMINALS
CLOSE-UP VIEW OF
SPRING LOCK TERMINALS
PARTIAL VIEW SHOWING SPRING LOCK TERMINALS
Tip, ring and sleeve terminals are spring lock type.
Hi-D Jax ? enclosed 1/4" phone jacks offer spring lock PC
terminals which close during insertion into PC board. Upon
completed insertion, the terminals reopen to securely hold the
jack to the PC board during soldering. Solder “fills” the terminals
which provides an additional security from loosening.
The spring lock terminal is available on all Hi-D Jax ? which
currently offer PC terminals.
NOTE: Tip and ground terminals can be specified with spring
lock terminals (also ring terminal on 3-conductor jacks).
MOUNTING
Jacks mount in a single .375" diameter hole on .625" minimum
centers. Series 11*, N11* and S11* mount in panels up to
.156 " thick. Series NL11* (long bushing) mount in panels up to
.250 " thick. Jacks with PC terminals mount on PC boards up to
.094 " thick. Spring lock PC terminals hold jack securely to PC
board. Threaded bushing permits mechanical connection to
equipment panel. Mounting hardware is supplied. See
“RECOMMENDED PC BOARD LAYOUT” for further details.
SERIES 11* - 2- and 3-conductor types, threaded metal
bushing .276" long. .250 inch inside diameter bushings.
SERIES N11* - Same as Series 11* except bushing is
molded thermoplastic for insulated mounting.
SERIES NL-11* - Same as Series N11* except bushing is .375"
long for insulated mounting in panels up to .250" thick.
SERIES S11* - Same as Series 11* except bushing has .210"
inside diameter Smaller diameter protects against accidental
insertion of plugs with .250" diameter fingers.
SPECIFICATIONS
MATERIAL
Mounting Bushing: Series 11*, S11*: Nickel-plated copper
alloy. Series N11*, NL11*: Molded thermoplastic over plated
copper alloy sleeve.
ORDERING INFORMATION
TWO CONDUCTOR PART NUMBERS
Typical
Jack
Mating
Part Number
Description
Schematic
Plug 1
? 111PCS
? N111PCS
? 112APCS
? N112APCS
? 113PCS
? 113EPCS
Open circuit I
Insulated bushing I
Single closed circuit III
Insulated bushing III
Isolated “make” circuit V
Isolated “break” circuit IX
250
250
250
250
250
250
THREE CONDUCTOR PART NUMBERS
? 112BPCS
? N112BPCS
? S112BPCS
? 113BPCS
Double open circuit IV
Insulated bushing IV
.210" I.D. bushing IV
Single closed circuit VII
267
267
S267
267
RECOMMENDED PC BOARD LAYOUT SPRING LOCK
TERMINALS (COMPONENT SIDE)
NOTES:
1. SERIES 110PC––ALL HOLES TO CLEAR .078" X .016" TERMINAL.
2. SERIES 110PCS––TIP, RING & SLEEVE HOLES TO BE .055" DIA. RING SHUNT &
TIP SHUNT HOLES TO CLEAR .078" X .016" TERMINAL.
? N113BPCS
? 113FPCS
? 114BPCS
? N114BPCS
? NL114BPCS
Insulated bushing VII
Ring closed circuit XXVIII
Double closed circuit XII
Insulated bushing XII
.375" long bushing XII
267
267
267
267
267
1 See Jack Section for other mating plugs.
? Special order only. Contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
